The ENTRY series from Nextlab.tech is a classical electronics and robotics kit family compatible with the Arduino IDE, designed for classroom use as well as individual study. The kits are ideal for structured lessons, STEM laboratories, and technology classes, while also supporting self-paced learning and home experimentation.
The ENTRY series is available in three versions: ENTRY I, ENTRY II, and ENTRY III, allowing educators and learners to choose the level that best matches their experience and curriculum needs. Each version builds progressively, offering a clear learning path from basic electronics to more advanced Arduino-based projects.
All ENTRY kits are based on the ATmega328 microcontroller, fully compatible with the Arduino IDE, and use the modern ATmega328PB variant, which provides enhanced functionality while maintaining full Arduino compatibility.
The programmable board included in the ENTRY kits is manufactured in the European Union, ensuring high quality, reliability, and compliance with European manufacturing standards.
ENTRY kits are ideal for classroom environments because they support hands-on, project-based learning with real electronic components. Teachers can use them for demonstrations, guided exercises, and individual or group projects, while students gain practical experience with electronics, sensors, and programming in C/C++ using the Arduino IDE.
Thanks to the wide range of components and sensors included, students can build and program a variety of Arduino projects, such as:

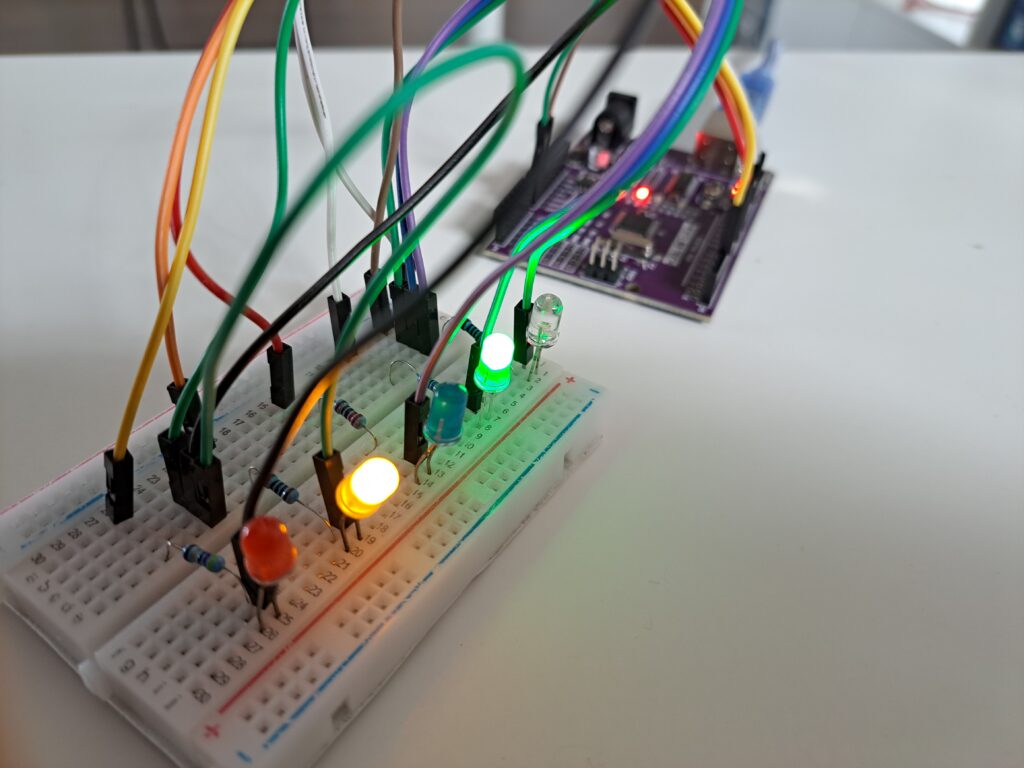

- Blinking and fading LEDs using digital and PWM outputs
- Traffic light systems with timed logic
- RGB LED color mixing and control
- Button-controlled interactive circuits
- Temperature and humidity monitoring systems
- Ultrasonic distance measurement and obstacle detection
- Light-sensitive projects using phototransistors
- Servo motor positioning and control
- DC motor speed and direction control using an H-bridge
- Sound effects and alarms using a piezo buzzer
- Displaying sensor data on a 16×2 LCD screen
- Basic automation projects driven by sensor input
The ENTRY III kit contains:

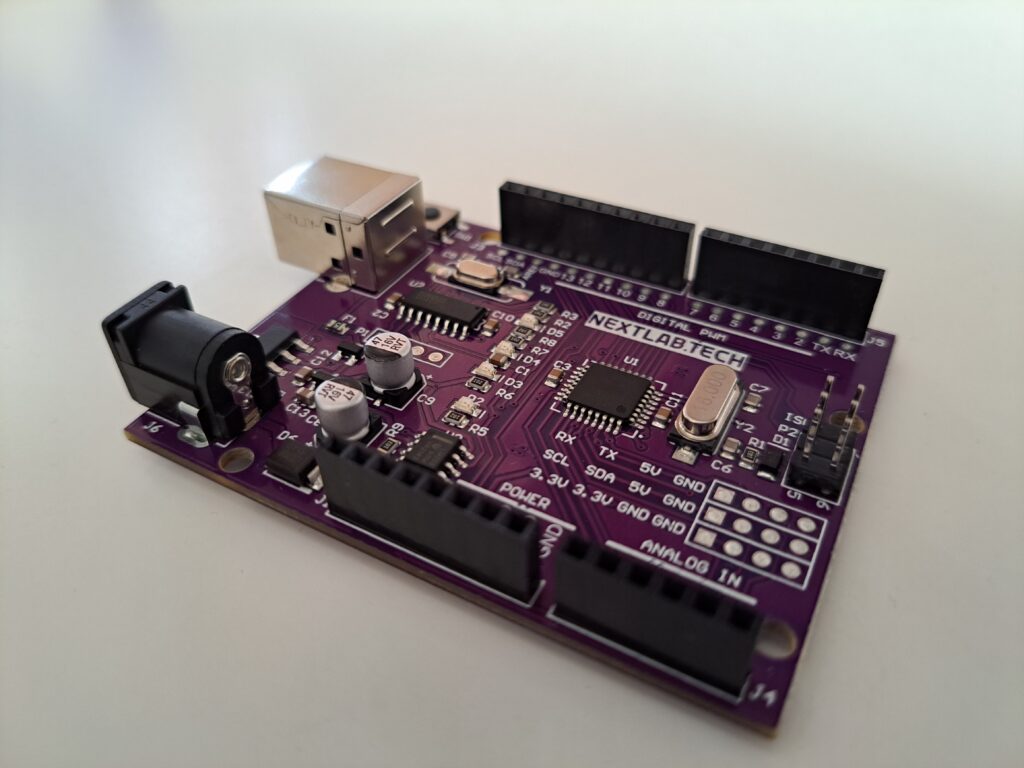

- Programmable board based on ATmega328PB (Arduino IDE compatible)
- USB programming cable
- Breadboard and experiment board
- Jumper cables and 70 connection wires
- Pin strip
- Phototransistor sensors ×6
- Temperature sensor
- Humidity sensor
- Ultrasonic distance sensor
- Tilt sensor
- Push buttons ×10
- Potentiometers ×3
- Alphanumeric LCD 16×2 display
- RGB LED
- Red LEDs ×8
- Green LEDs ×8
- Yellow LEDs ×8
- Blue LEDs ×3
- Single standard LED
- Piezo buzzer
- Small DC motor (6/9 V)
- Micro servomotor
- Motor driver (H-bridge)
- MOSFET transistors ×2
- Optocoupler
- Resistors (220 Ω to 10 MΩ)
- Capacitors ×3
- Diodes ×5
- 9 V battery
- Transparent colored films ×3
By working through these projects, students develop a strong understanding of Arduino fundamentals, including digital and analog I/O, PWM, timers, sensor integration, motor control, and structured programming. The ENTRY Robotics Kit series provides a robust, scalable, and classroom-ready learning solution that helps students build real electronics and programming skills using industry-standard tools.
